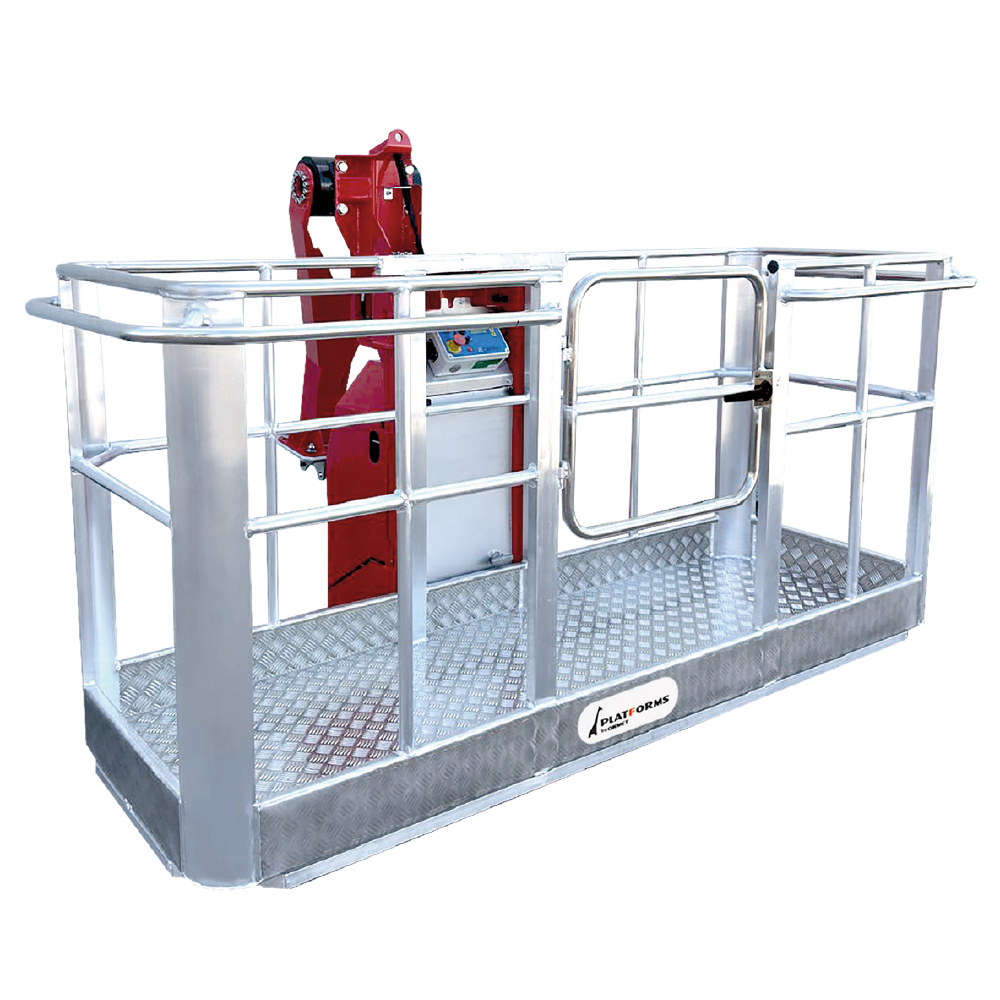

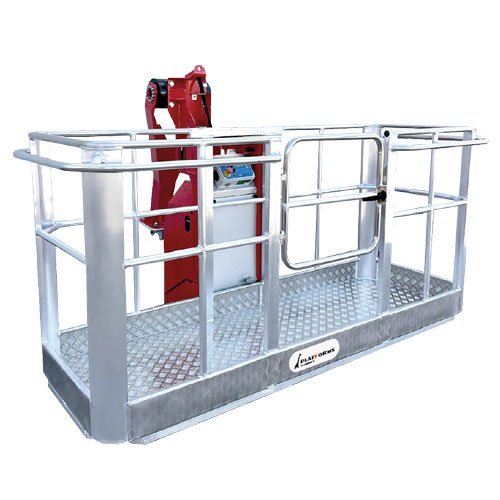

Self-levelling electro-hydraulic platforms

Self-levelling electro-hydraulic platforms bring at height up to 3 operators and have a 300-kg maximum capacity. They feature active levelling, and hydraulic rotation is via a dedicated lever located on the control box.

With a ±90° manual rotation, the operator can reach optimum working positions.

Electro-hydraulic platforms are equipped with an electro-hydraulic control unit managed by a cutting-edge electronic card and with a battery pack to power the motor for a simpler wiring to the crane.

The hydraulic rotation system allows for an easy positioning of the basket so that up to 3 operators can effortlessly work at the same time and on the same wall. The platforms are fitted with a load limit device that warns the operator when approaching the load limit and stops operation if exceeded as required by the regulations.

Manufactured in compliance with the EN280 regulations, they offer elevated safety standards. They work at 24V supply voltage featuring great flexibility for use on different cranes.
